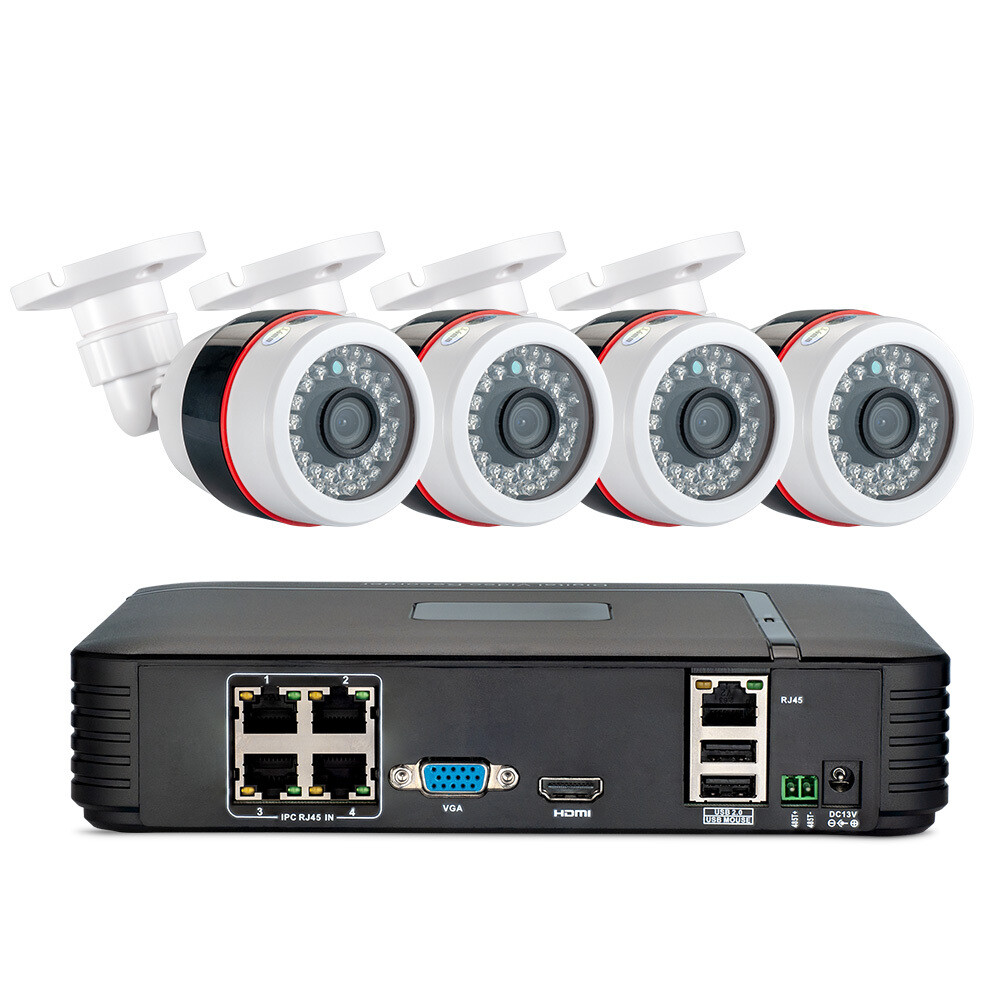

Package Contents:

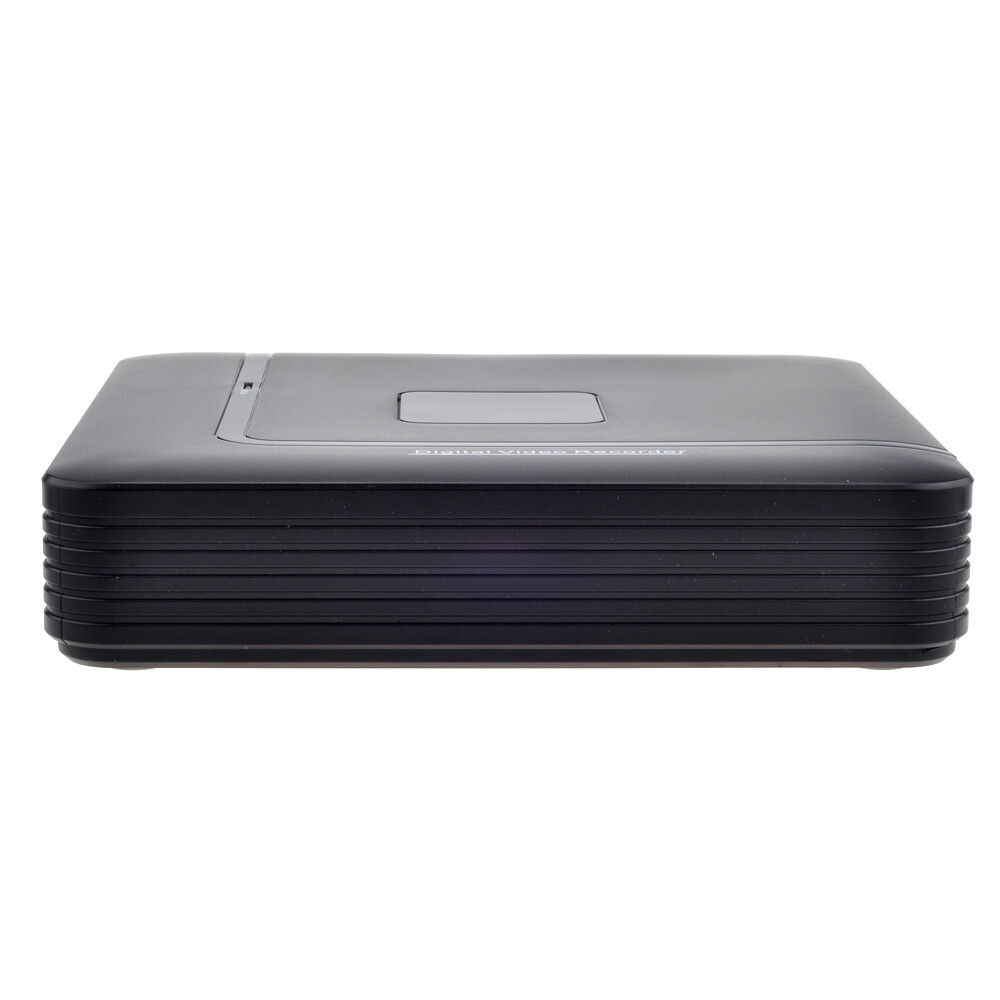

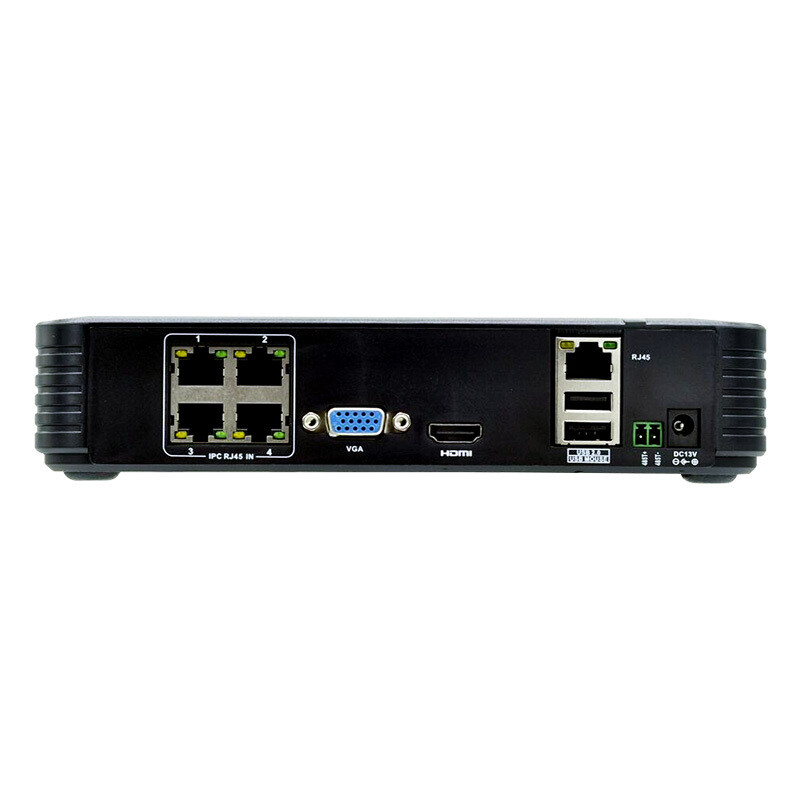

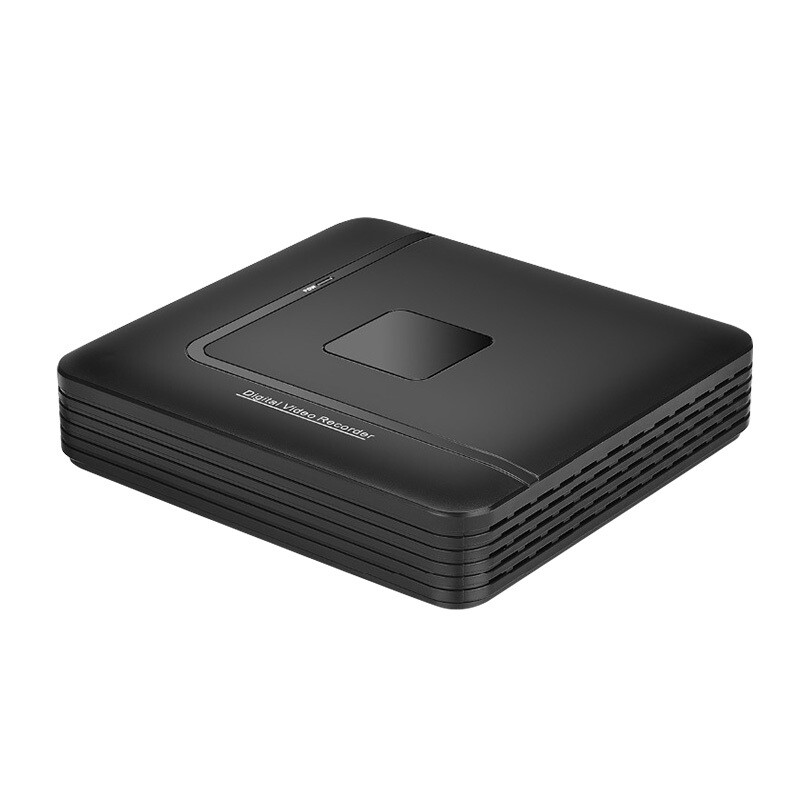

- NVR with preinstalled 3 TB Hard Drive
- NVR also includes power adapter, and a mouse

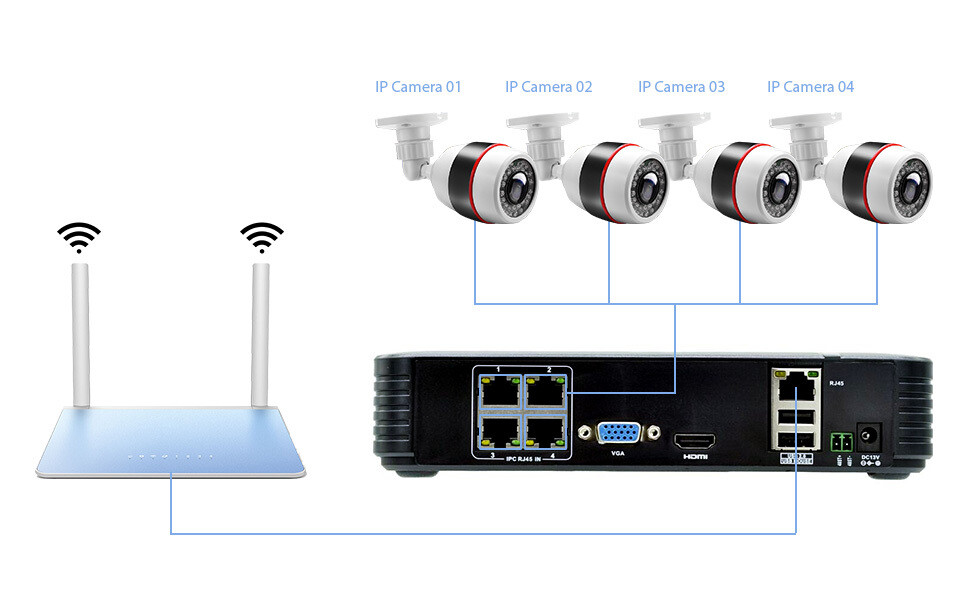

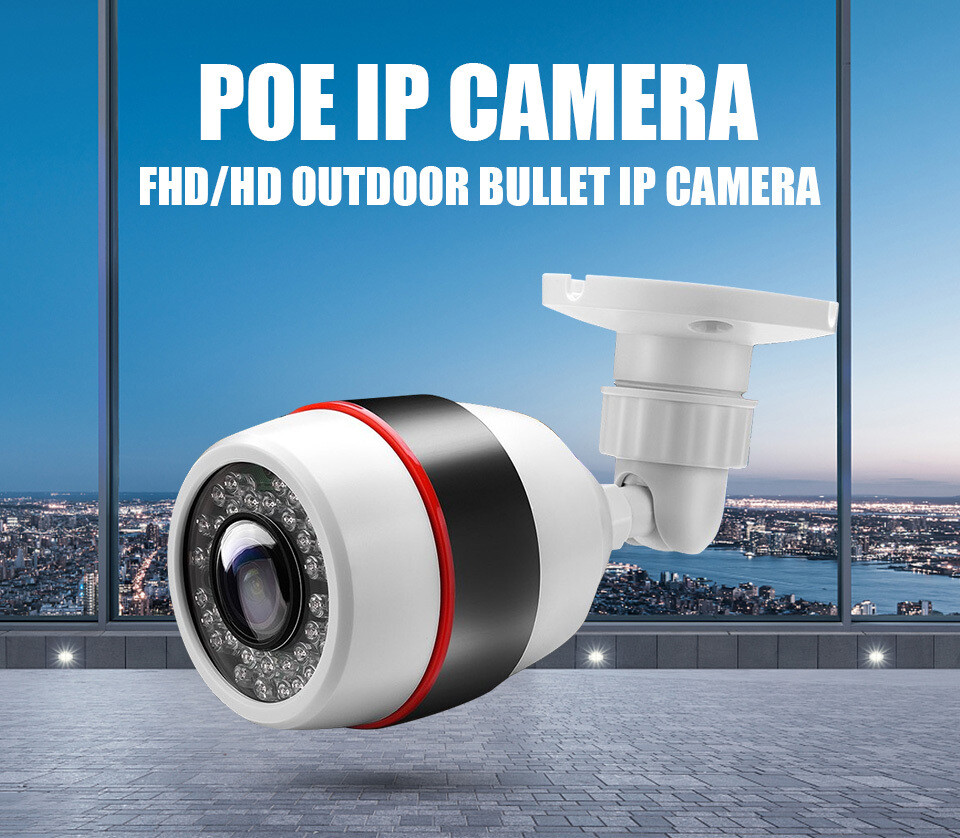

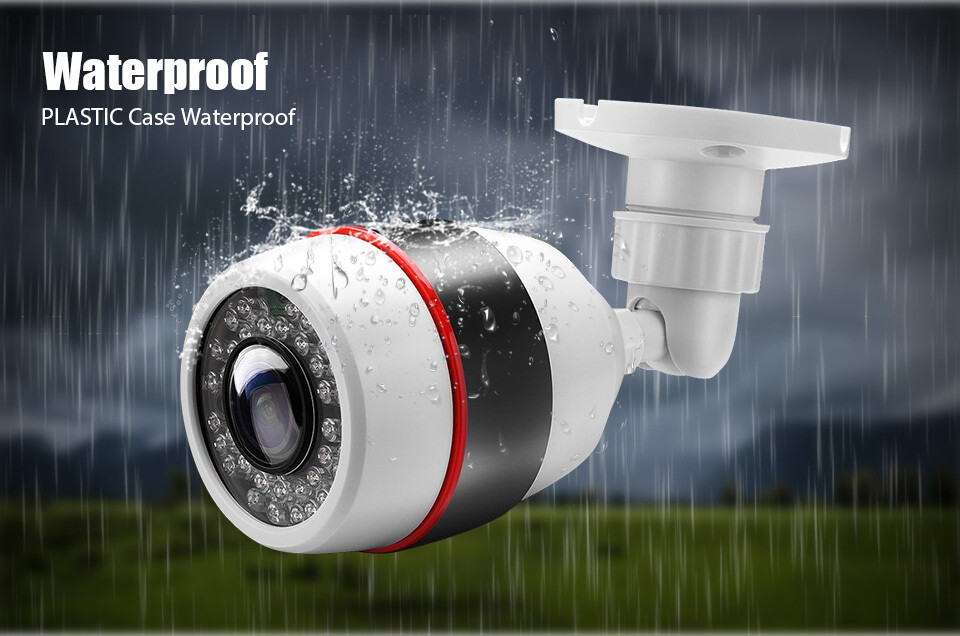

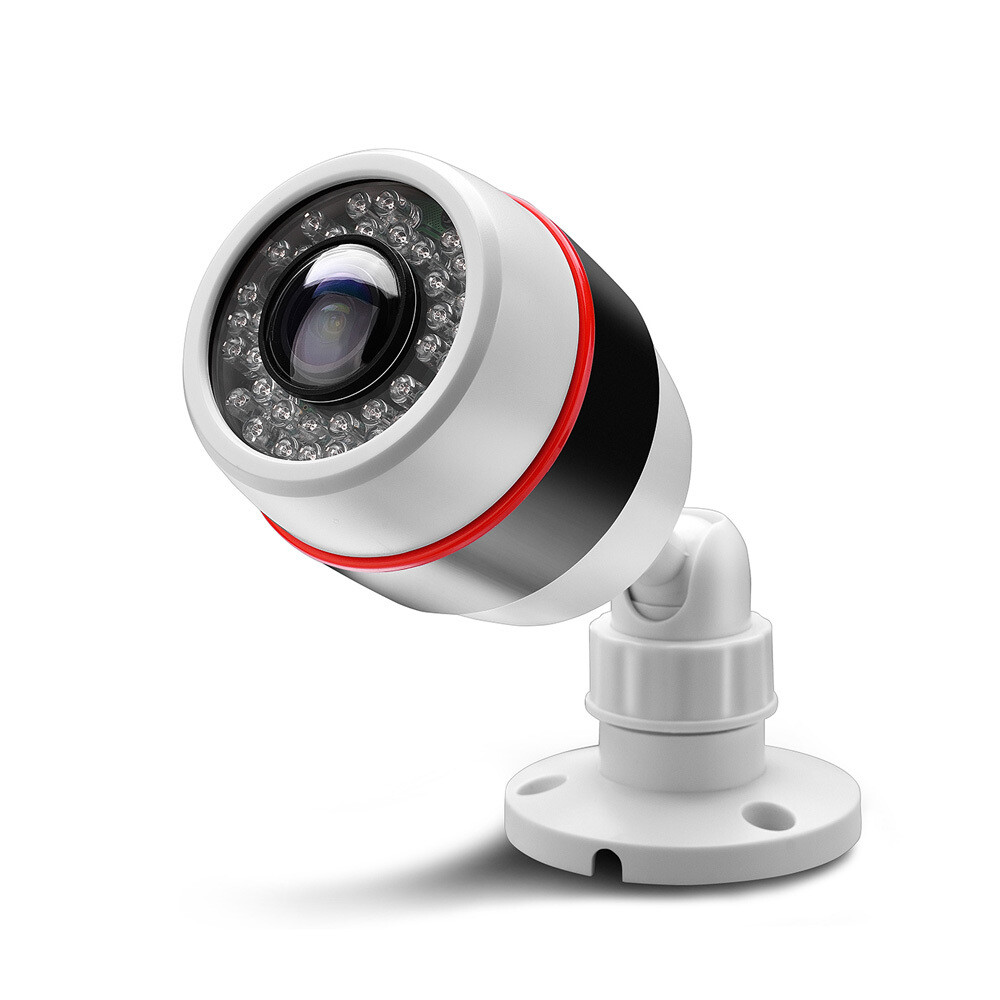

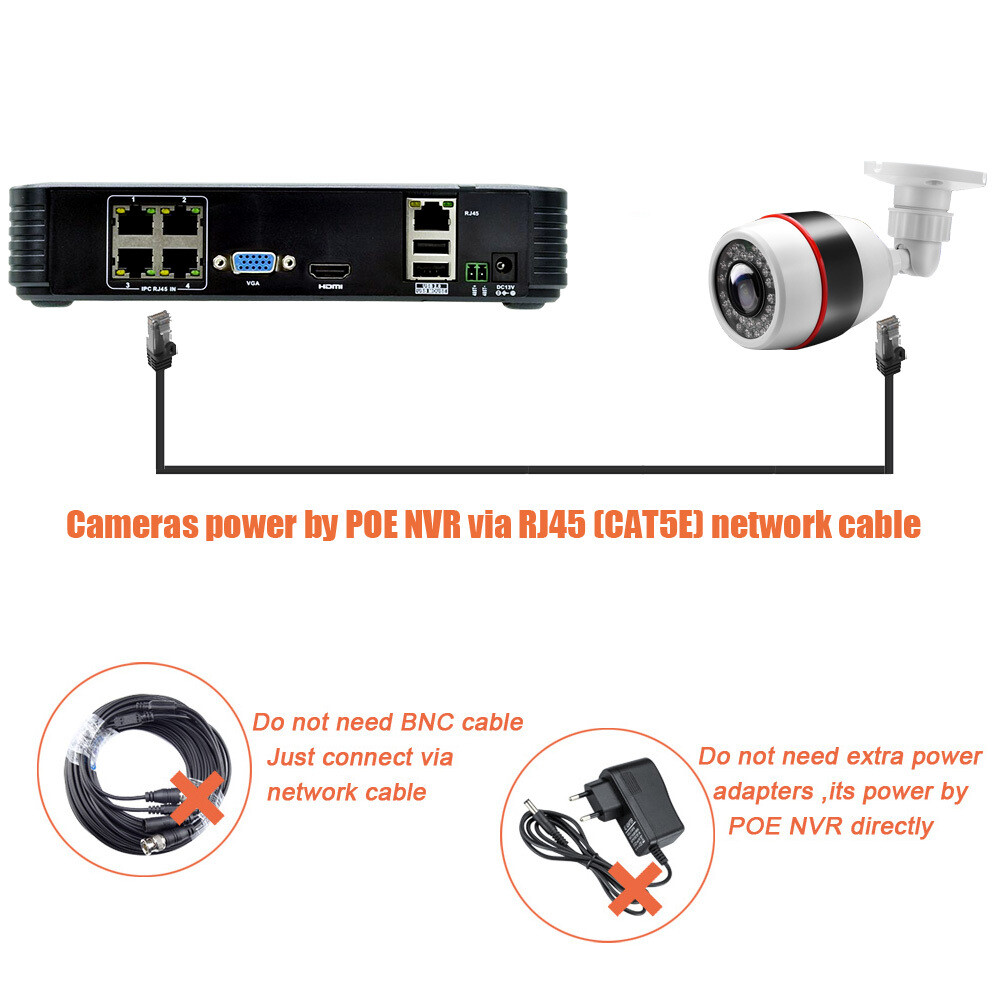

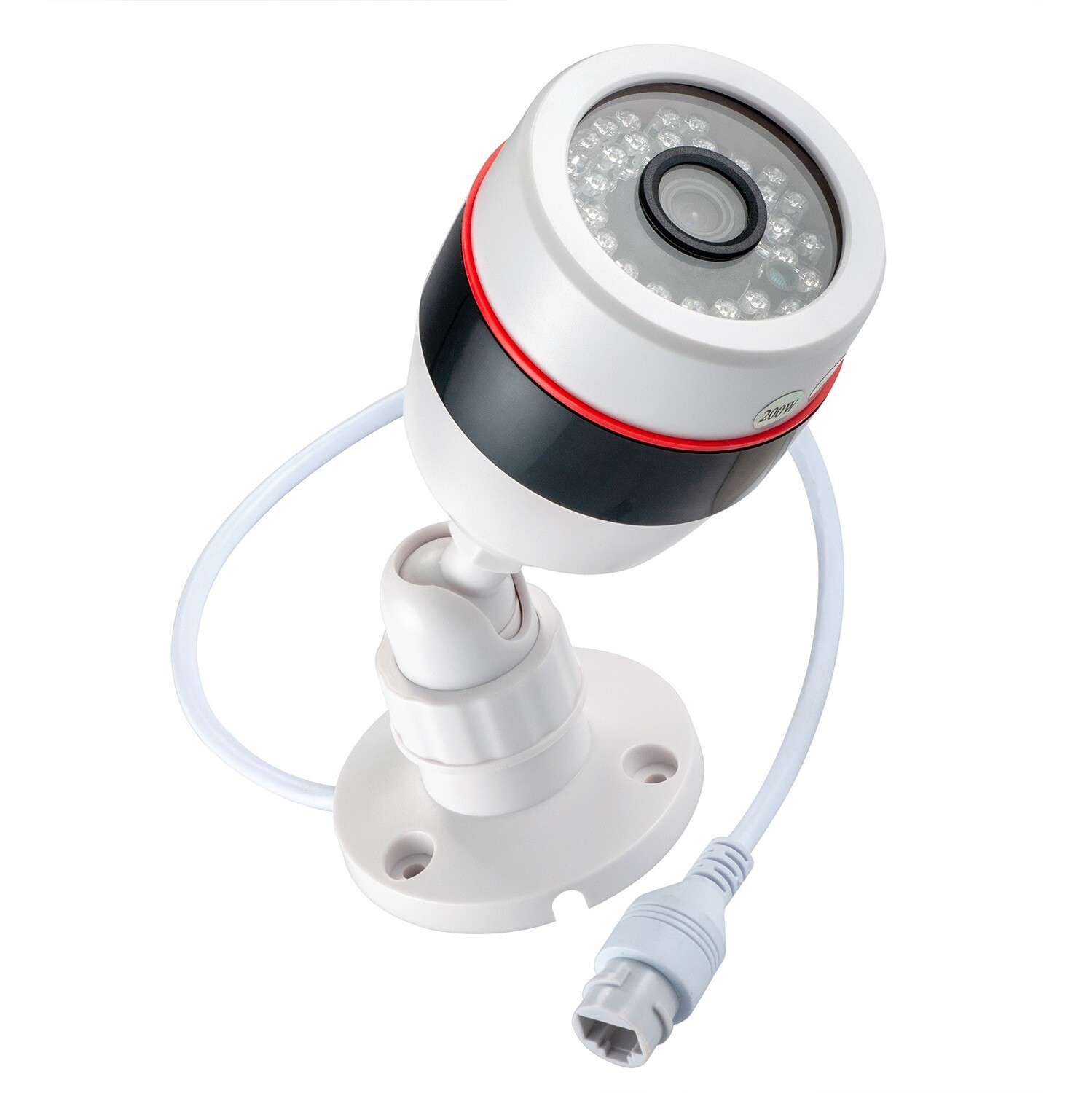

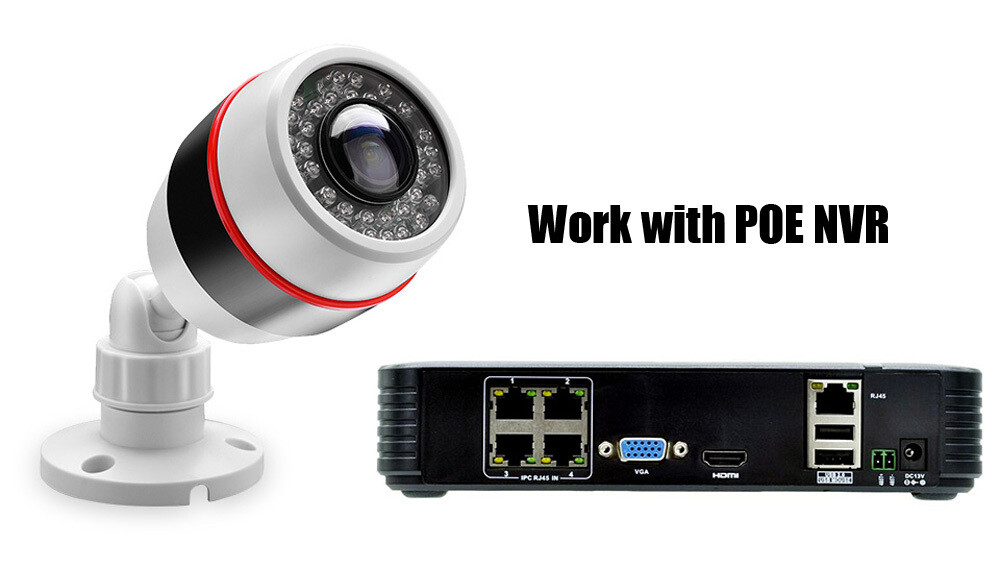

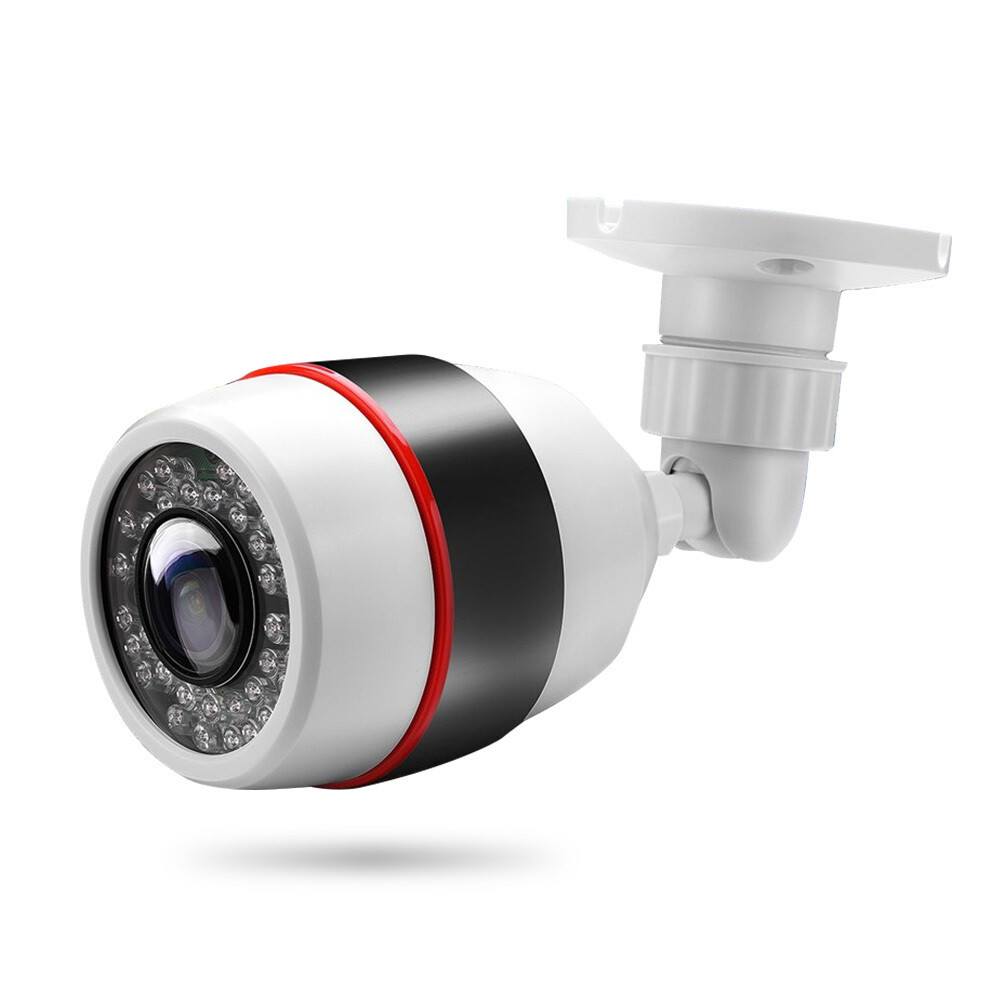

- 4 of 2MP POE Infrared Cameras that are IP66 rated (waterproof)

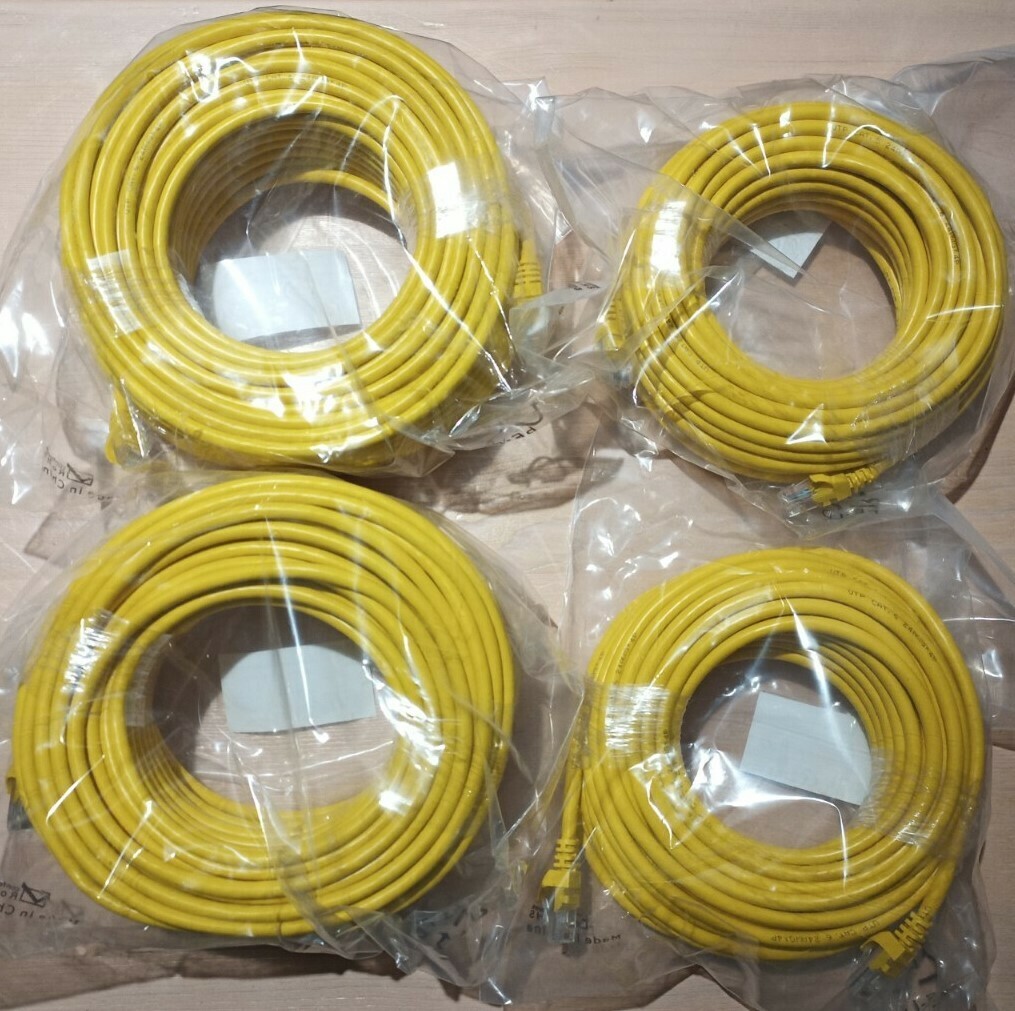

- 2 x 100 ft Cat 6 550MHz UTP 24AWG RJ45 Ethernet Cables (Colour of Ethernet Cables may vary depending on what is currently available)
- 2 x 50 ft Cat 6 550MHz UTP 24AWG RJ45 Ethernet Cables (Colour of Ethernet Cables may vary depending on what is currently available)
Features:

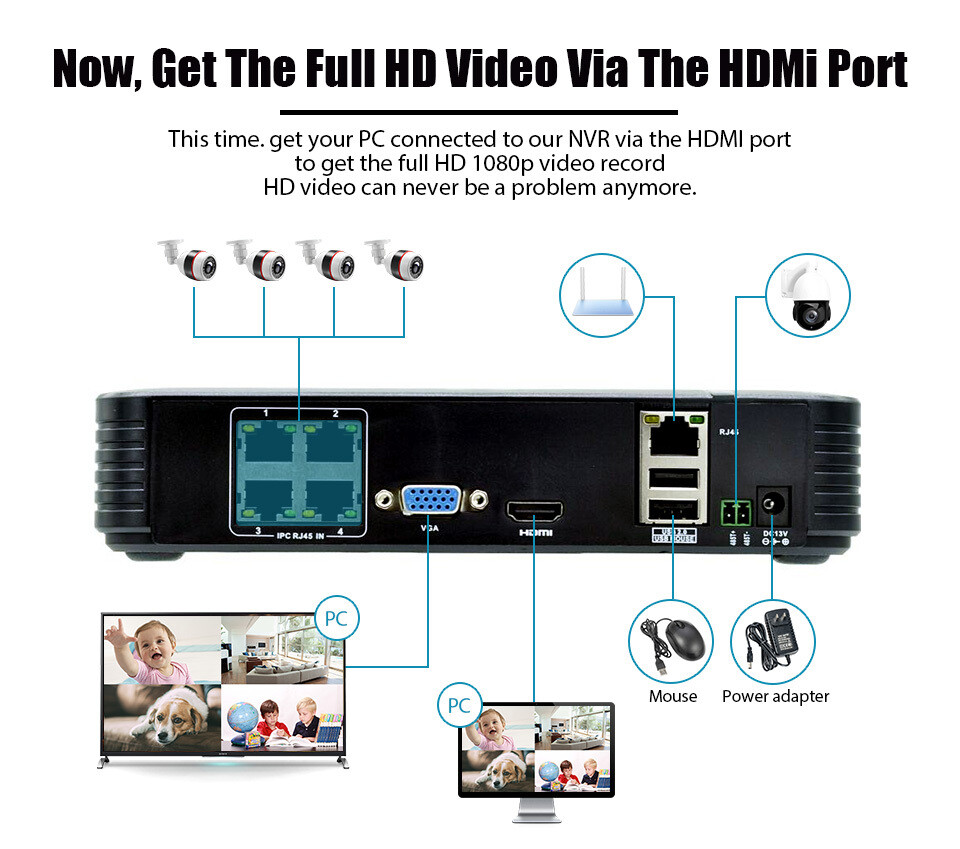

Ø support HDMI 1080P full HD output simultaneously;
Ø support Onvif;

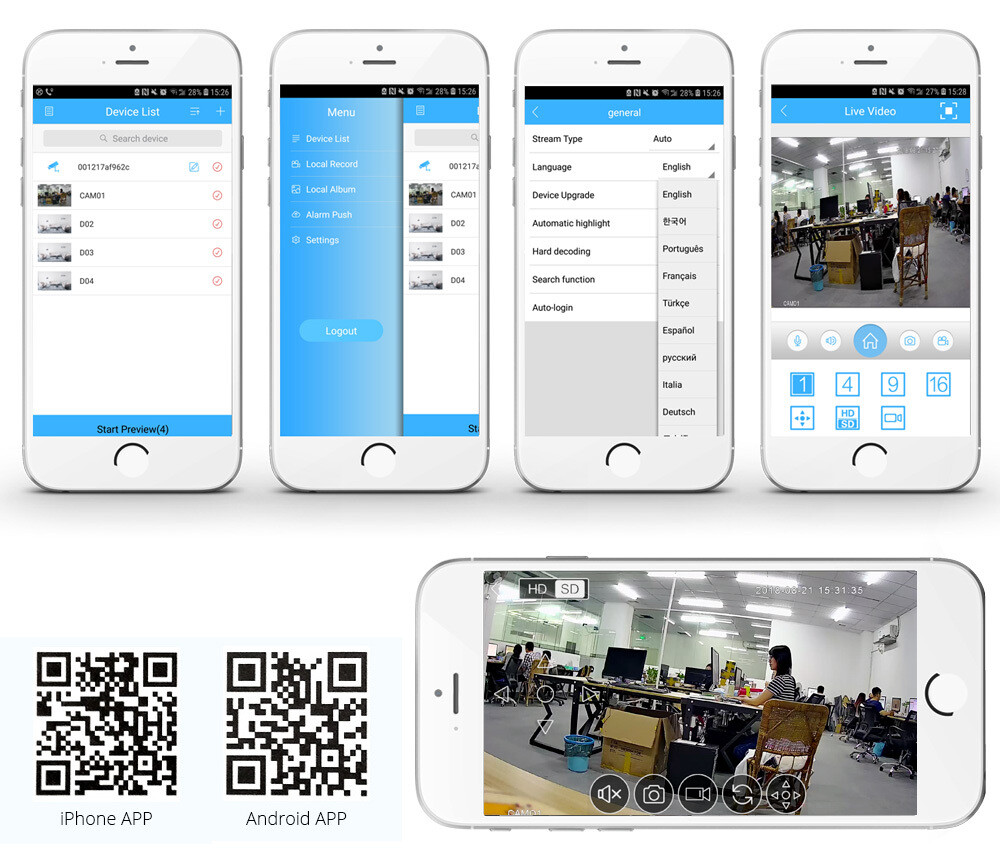

Ø Support web, CMS, center platform management software MYEYE, provide
SDK development;

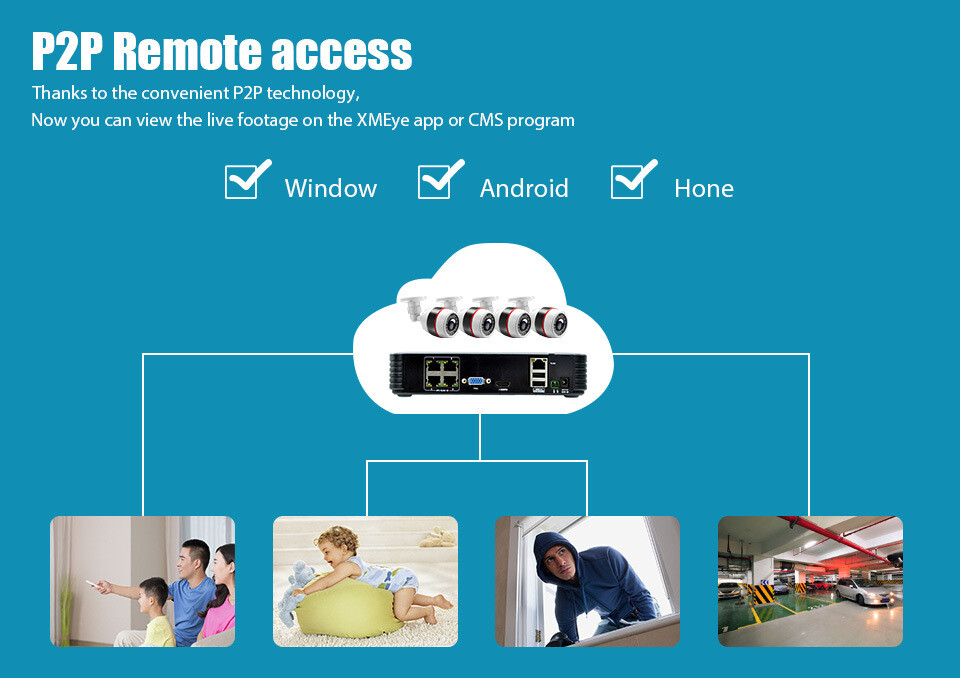

Ø Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
Ø Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches etc.);
Ø Visit remotely, built-in ARSP, achieve start up by one step.
Technical Parameters:
Model
N4H
System
Main processor
Hi3798M
Operating System
Embedded Linux
System Resources
Simultaneous multi-channel real-time recording, playback, network operation,USB backup
Operator
Interface
Operator interface
16-bit true color graphicmenu operation interface, support mouse operation
Preview
1/4
Video
Video input(IP)
4*5M/4*3M/4*1080P
Video standards
PAL(625TVL,50f/s);NTSC(525TVL,60f/s)
Video compression
H.265/H.264
Display quality
Max:4K
Playback quality
5M/3M/1080P
Decode
1*5M
Motion detection
Depend on camera
Audio
Audio compression
G.711a
intercom
Unsupport
Record
&
playback
Recording mode
Manual>Alarm>Video Detection>Continuous
LocalPlayback
1*5M/2*3M/4*1080P
Search mode
search by Time/calendar/event/channel
Storage
&
Record Storage
HDD 、network
Backup mode
Network backup,USB hard disk, USB burner, SATA burner

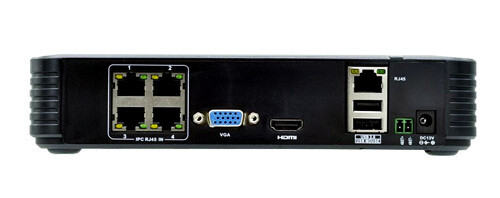

Interface
Video output
1ch HDMI HD output
LOOP VOUT
Unsupport
Audio I/O
0/0
Alarm I/O
0/0
Network interface
1*RJ45 10M/100M Adaptive Ethernetport
PTZ control
N/A
USB interface
2*USB2.0 port
Hard disk
1*SATA (Single maximum support 6T)
ESATA
N/A
other
Power supply
12V/2A
ONVIF
Support
Power Consumption
<10W(Without HDD)
Temperature
0℃-+55℃
Humidity
10%-90% RH
Atm
86kpa-106kpa
